TOPPING DX5 II Hi-Res DAC & Headphone Amp Combo – Dual ES9039Q2M, X-Hybrid Amp, 10-Band PEQ, LDAC Bluetooth 5.1, 4.4mm Balanced & 6.35mm Headphone Output, Preamp Mode, 12V Trigger (White)
$299.00
Related Products
Product description
TOPPING DX5 II Hi-Res DAC & Headphone Amp Combo
Dual ES9039Q2M, X-Hybrid Amp, 10-Band PEQ, LDAC Bluetooth 5.1
Wide range of adaptation to headphones
Equipped with 6.35mm single-ended, 4.4mm balanced, and 4-Pin XLR outputs; ultra-low 1.8uVrms noise floor ensures hiss-free listening, perfect for sensitive IEMs to power-hungry headphones.7600mW x 2 output
Directly connect active speaker to adjust volume
The DX5 II features a “preamp” mode. In preamp mode, you can adiust the output volume of DX5 II, then connect it directly to a pure amplifier or active speaker without the need for a separate preamplifier.Volume memory functionality
X-Hybrid Amplifier Circuit & LDAC wireless
LDAC wireless available
Equipped with QCC5125 chip, The TOPPING DX5 II supports Bluetooth 5.1 and can support up to 96kHz/24bit. Also it fully supports LDAC/aptX-Adaptive/aptX/aptX HD/AAC/SBC and other audio encodings.allowing high-quality audio to be transmitted wirelessly to provide a music experience beyond CD level
X-Hybrid Headphone Amplifier Circuit
X-Hybrid builds on NFCA architecture with a new triple-stage hybrid design, delivering ultra-low distortion, high dynamic range, and improved efficiency. Optimized circuitry lowers power use and heat. The compact chassis features a fully balanced quad-channel amp.SNR: 133dB @1kHz / DNR: 133dB @1kHz
2.0 inches Aurora UI
2.0 inches full color screen and 3 buttonsMake quick and efficient adjustments to your settings, An experience changed from this moment.
Ten-band PEQ adjustment
Topping’s brand new PEQ algorithm and desktop software allow you to fine-tune the frequency, gain, and bandwidth of each PEQ band.
Plug and play
The DX5 II has a wide range of compatibility and apply to various operating systems. and the USB input supports up to PCM768kHz/32bit and DSD512

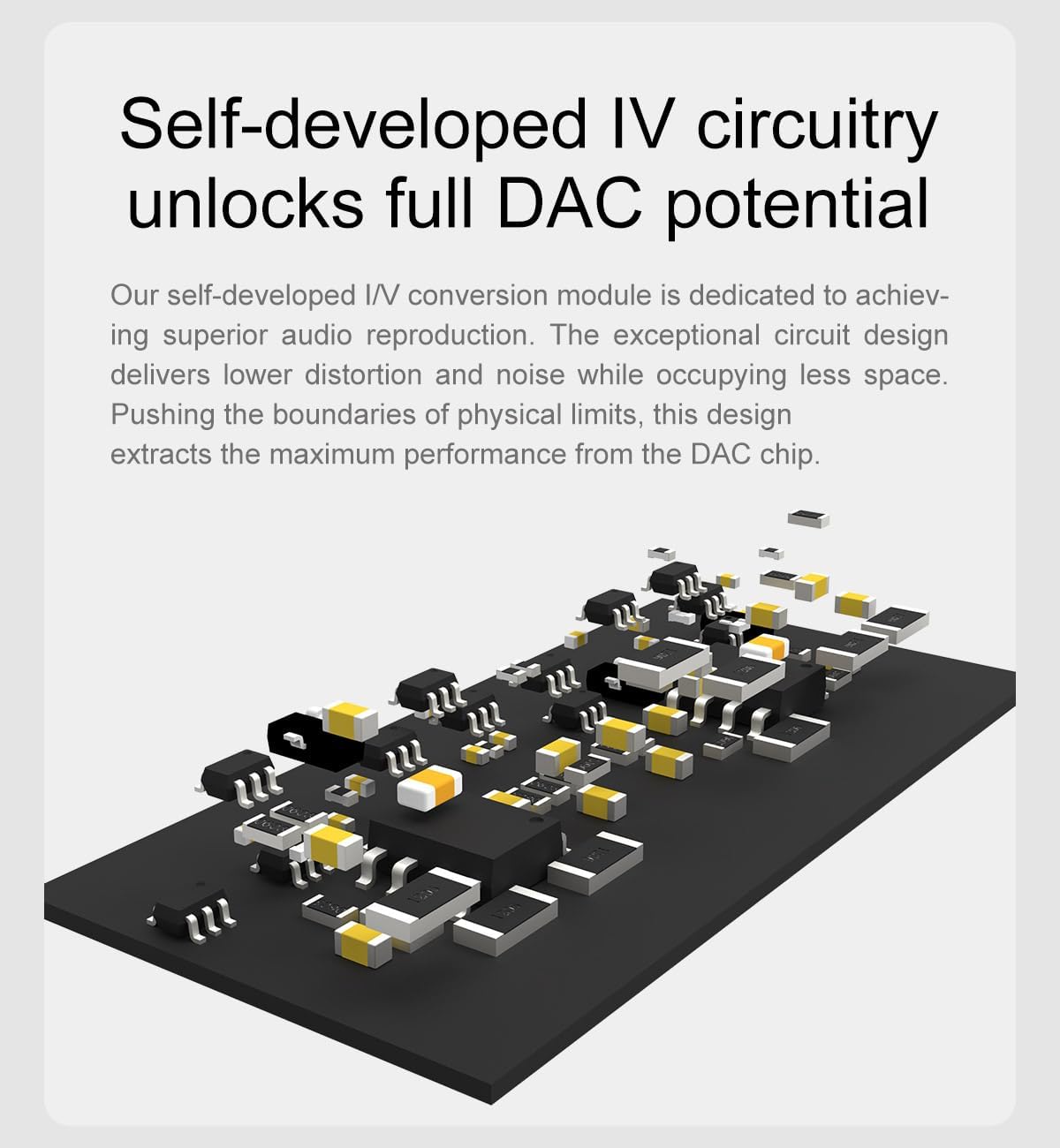

Self-developed IV circuitry
The module is dedicated to achieving superior audio reproduction. The design delivers lower distortion and noise while occupying less space.
What is in the package

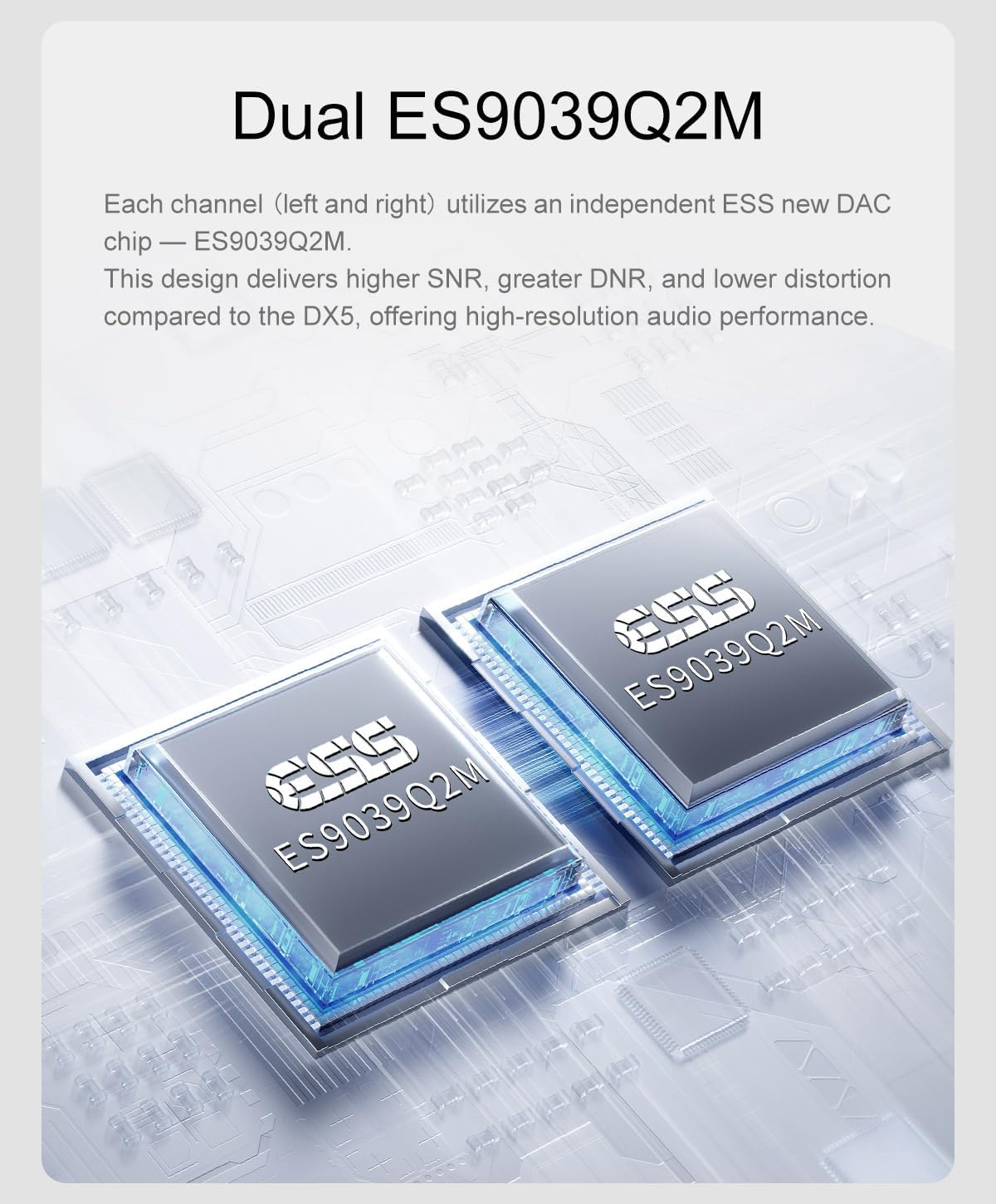

【Dual ESS9039Q2M DAC Chips】 Equipped with dual DAC chip ES9039Q2M, the TOPPING DX5 II delivers high-resolution DAC performance with ultra-low distortion and noise, supporting PCM768kHz/32bit, DSD512 decoding — a true audiophile DAC amplifier for your desktop system.
【Powerful Balanced Headphone Amp】 The DX5 II features an X-Hybrid headphone amplifier circuit with fully balanced quad-channel design, offering an impressive 7600mW x2 output. Perfect for driving demanding high impedance headphones or sensitive IEMs with no audible noise floor. A must-have desktop DAC amp for HiFi enthusiasts.
【10-Band High Precision PEQ Adjustment】 With its advanced 10-band PEQ adjustment and self-developed IV circuitry, DX5 II allows precise tuning of your audio system. Whether paired with balanced headphone amp, HiFi DAC amp, or active speakers, you can easily achieve the ideal sound signature.
【Bluetooth 5.1 & LDAC Wireless DAC】 Enjoy high-quality Bluetooth DAC amp experience with DX5 II’s support for LDAC, aptX Adaptive, aptX HD, AAC, and SBC codecs. The built-in QCC5125 ensures wireless audio quality beyond CD level — perfect for modern streaming needs.
【Aurora UI with Full-Color Display】 The vibrant 2.0″ Aurora UI screen with 9 customizable themes and a user-friendly pressable knob offers intuitive control. Quick switching of preamp, headphone amp, or Bluetooth DAC modes makes this an ultra-versatile addition to your USB DAC setup.
【Extensive Connectivity & Plug-and-Play】 Featuring USB/Bluetooth/Coaxial SPDIF/Optical SPDIF/ input with XMOS XU316, DX5 II supports DAC operation across Windows, Mac, Linux, iOS, and Android platforms. Truly a 32-bit DAC for discerning ears.
【12V Trigger & Active Speaker Friendly】 DX5 II supports 12V Trigger in/out for seamless integration with HiFi systems. Use its preamp mode to directly control volume when connected to active speakers or pure amplifiers. Ideal for building a clean, powerful balanced DAC & headphone amp desktop stack.
10 reviews for TOPPING DX5 II Hi-Res DAC & Headphone Amp Combo – Dual ES9039Q2M, X-Hybrid Amp, 10-Band PEQ, LDAC Bluetooth 5.1, 4.4mm Balanced & 6.35mm Headphone Output, Preamp Mode, 12V Trigger (White)
Add a review
$299.00
David –
Fantastic DAC/Amp — transparent, powerful, and refined
The DX5 II delivers exceptional performance for its price. It’s clean, quiet, and effortless, with no coloration — exactly what a transparent DAC/amp should sound like. Dual ES9039Q2M chips give it impressive dynamic range, and both the balanced 4.4 mm and XLR outputs drive demanding headphones with ease.Build quality is excellent, the display is crisp, and the remote control makes daily use convenient. The USB input locks instantly, and it handles 24-bit/192 kHz and DSD playback flawlessly from a Mac.I’ve owned other DAC/amps in this class, but the DX5 II stands out for its combination of neutrality, drive, and low noise floor — it simply disappears and lets the music speak. Highly recommended.
Corporate Nomad –
Legend in it’s own time DAC – how can be this price?
What’s in the box?Topping DX5 II, remote (no batteries included), power cable (note has internal power supply), Bluetooth cable, USB A to USB B cable, headphone adapter.What does it do?A DAC converts the digital information on a CD, MP3 or other digital audio file into sound information that can be played on a speaker or headphones. What this unit does compared to the DAC in a portable CD player or phone does is do it much better with two DAC processors (one for each channel for stereo) for improved sound quality that is more representative reproduction of the original recording.This unit is also a headphone amp that takes that analogue audio signal and increases the output to drive headphones.OutputsRear: Balanced XLR outputs, RCAFront: Headphone and an XLR outputInputs: Optical, BT via aerial, USBI use the balanced XLR outputs to minimize the noise from the DAC to my powered Studio Monitors (I’m running a pair of JBL Professional 306p Mk2).How good is it?My response is a question – how can something at this price point be so good and have so many features… the sound quality is great even before adjusting the parametric EQ for my preferences. Paired with my studio monitors I’m astonished at how good this rig sounds. The Topping software can be used to save and finesse things but it’s amazing what you get at this price.The volume dial, controls are intuitive to use and it was easy to set up. I like the clean design too.SummaryThis thing is going to be legend in its own time. So many features, quality at this price point throws the gauntlet down for any one else in the market. Truly impressive.
Bayard West –
The Customizable DAC for Discerning Listeners
I had a DAC, but my daughter and I like to share music, her on a pair of Phillips SHP9500 headphones and me on Sennheiser HD560S. So I needed a 2nd headphone amp and zeroed in on the Topping DX5ii programmable DAC because of it’s glorious screen and powerful headphone amp. I had heard of Topping but never thought I’d be able to afford any of their stuff. This one went on sale for $50 off open box and I saw the 2-birds-1-stone opportunity.I’m using all the inputs – a WiiM Ultra music streamer on Coax, a Pioneer DV-525 CD transport on optical, USB for Samsung phone, and bluetooth from the Hisense TV. I have this hooked up to a rather fancy Gishelli Labs Archel 3 pro headphone amp with SparkOs chipsets. It’s a wonderful pairing. Electric guitar strings are other worldly. I use balanced output cables to connect to the headphone amp to double voltage output for my harder to drive 120ohm Sennheiser headphones (keeps the volume know closer to noon than max).How it looks:The bar graph analyzer is cool. The VU meter is neat. The unit in all black is sleek looking. It sits perfectly on the Wiim Ultra streamer.How it feels:The volume/control knob steps neatly from one volume setting or menu option to the next perfectly – perfect tactile feel.How it sounds:Glorious. Absolutely killer. Now let’s get this out of the way: this doesn’t sound as good out of the box as my Douk Q11 did (a much less pretentious piece). Here’s why: The DX5ii is customizable, and if you can take 90 minutes, you can make it sound way better than the competition. But you need to put in that time. If you’ve never had an external DAC, maybe you wouldn’t know, but the hope is you’ll explore. Let’s get into that.To customize the unit and setup your own EQ Profiles, you’ll need the Topping Tune app. It takes a few minutes to get used to but isn’t rocket science. I used Microsoft CoPilot / Chat GPT to get some advice on the numbers to put in and it turned out to be great. And customized to the sound profiles of my headphones!There are PCM filters which smooth out the sign-wave of sounds after conversion from digital to analog. The differences are subtle, and you could just leave it at default and be pleased, but if you like warm, tones try F2, F5, F7 or F8. Maybe F6. For picking apart a studio performance, F4. Favor F2 for live performances. All that said, I play with that setting constantly but end up parked on F5.The advance options are worth looking into. I love the part where you can reduce the number of input and output options. You can also make the EQ settings or volume track with inputs or outputs. It really saves time.
Paul The Alien –
Well built, Clinical pure sound, supports balance headphones
I purchased the Topping DX5 II DAC out of impulse after watching a YouTube review, I wanted a spare DAC for my office and the moment I heard the sound I was blown away by the sound quality and clarity, how is little monster able to beat my $4k Lynx Hilo 2? this is under $300!!! The sound is clinical but absolutely pure and beautiful, TOPPING I am getting a second one because this one is going to stay home , Thank You !!!
Kirill Korchagin –
Incredible value
Honestly surprised how good this is. I don’t know anything else that can beat it at this price.Sound quality is great, many inputs/outputs, lots of power, built-in PEQ without overpaying was a huge thing for me. So many features with such great clean neutral sound that lets your headphones shine (can also connect speakers). I have some nitpicks about their windows app for EQ, but insignificant.The only problem I have so far is that saved EQ profiles on the amp itself disappear when you power it off. I believe they are aware and working on it, but so far I have to set them there every time I turn it on or just open the app and turn on the ones saved in the app itself.
ねこ –
これより上の価格帯の製品はいっぱいある。 でもこれでいい むしろこれがいいと思える
Mark –
What a fantastic piece of technology. But before getting there, I was positively surprised by its outstanding packaging. It got shipped a few days ago from China and arrived safely today in the UK. Topping’s DX5 ii is simply mind blowing – well worth the wait. The last time I’ve listened to high quality music was in my dad’s 1987 Technics Hi-Fi stereo (unbelievable how we forget how music should really sound). It comfortably fits on my desktop and the sound quality is fantastic. It is already the best upgrade I’ve made for my PC this year. There is plenty of good information out there on how to set it up and fine tune your preferred headphones or speakers using any one of its many input/output options. Definitely good value for money, assuming it will last for long time given its quality build (fingers crossed).
Amazon カスタマー –
DX7 Proが不安定になったため、買い換えました。主に接続している機器はSENNHEISER IE900、HD660S2です。なんといっても、特筆すべきはPEQでしょうか。箱だし直後は正直好みの音では無かったですが、ハーマンカーブのプリセットをChatGPTに出力してもらい、適用するとドストライクな音になりました。そのままだと音割れ気味だったので「Preamp: -5.0 dB」しています。その他の機能も充実しており、この値段で大丈夫なのか心配になるほどです。一点だけ躓いたのが無音状態から音を出した時のポップノイズです。TOPPINGの公式サイトから「V5.74 driver for most of TOPPING DACs」をインストールする事で解決しました。
Andy –
Great sound quality when paired with descent headphones, outstanding value for money, in the past I have paid twice as much for half as good
Paul M –
Amazing sounding bit of kit.So long as you are willing to put the time and effort into tuning it via the app, you will get the sound that you want whether its for music , film or gaming.I’ve used with FIIO JT1, HD660s, and IEMs (TruthEar Nova)I’ve also added my schiit Jotunheim in the chain to it which gives it an extra punch.
